4 Inch DC Brushless Solar Pump with Plastic Impeller 4DLR

4 Inch DC Brushless Solar Pump with Plastic Impeller 4DLR

Product Features:

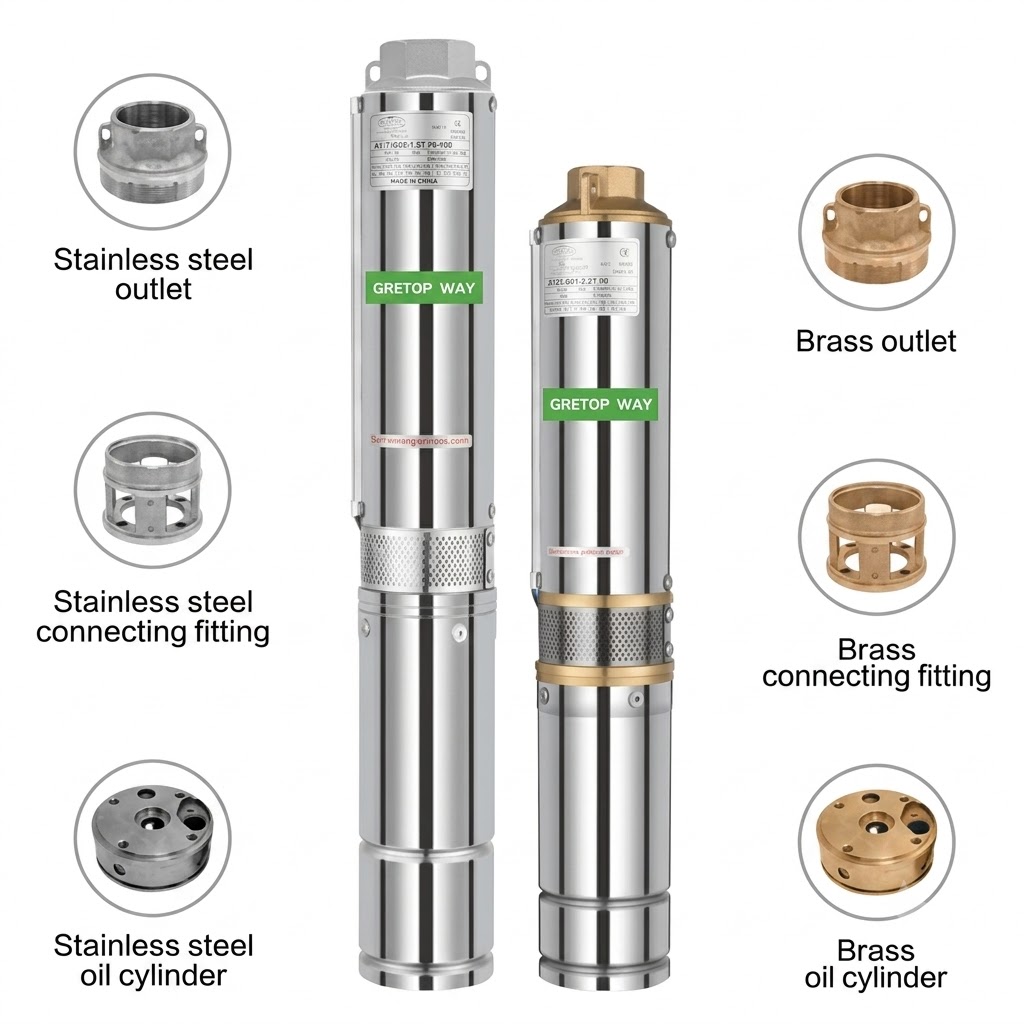

The 4DPC series is a 4″ DC brushless solar pump featuring corrosion‑resistant plastic impellers, NSK bearings, stainless steel oil cylinders, and a stainless steel outlet fitting for enhanced durability. It offers a wide voltage range (48V–110V) with power options from 500W to 1500W, delivering flows of 4.5–17 m³/h and max heads up to 105 m. Outlet sizes include 1.25″ and 2″ to suit different piping needs. The built‑in DC controller provides automatic protection and intelligent speed regulation. Ideal for large‑scale irrigation, deep‑well lifting, and community water supply – fully solar‑powered with zero running costs.

Inquiry Now

Description

Technical Data

Model Voltage Optimum Input Voltage (DC) Power Max. Flow Max. Head Outlet Cable Length Solar Panel (VOC) Solar Panel Power
4DPC4.5‑40‑48‑500 48V 60V‑90V 500W 4.5m³/h 40m 1.25″ 2m <120V ≥1.3 × PUMP POWER
4DPC4.5‑55‑48‑600 48V 60V‑90V 600W 4.5m³/h 55m 1.25″ 2m <120V ≥1.3 × PUMP POWER
4DPC4.5‑55‑72‑600 72V 90V‑120V 600W 4.5m³/h 55m 1.25″ 2m <170V ≥1.3 × PUMP POWER
4DPC4.5‑80‑48‑750 48V 60V‑90V 750W 4.5m³/h 80m 1.25″ 2m <120V ≥1.3 × PUMP POWER
4DPC4.5‑80‑72‑750 72V 90V‑120V 750W 4.5m³/h 80m 1.25″ 2m <170V ≥1.3 × PUMP POWER
4DPC5‑105‑72‑1100 72V 90V‑120V 1100W 5m³/h 105m 1.25″ 2m <170V ≥1.3 × PUMP POWER
4DPC5‑105‑110‑1100 110V 110V‑150V 1100W 5m³/h 105m 1.25″ 2m <220V ≥1.3 × PUMP POWER
4DPC6‑42‑48‑600 48V 60V‑90V 600W 6m³/h 42m 1.25″ 2m <120V ≥1.3 × PUMP POWER
4DPC6‑42‑72‑600 72V 90V‑120V 600W 6m³/h 42m 1.25″ 2m <170V ≥1.3 × PUMP POWER
4DPC6‑56‑48‑750 48V 60V‑90V 750W 6m³/h 56m 1.25″ 2m <120V ≥1.3 × PUMP POWER
4DPC6‑56‑72‑750 72V 90V‑120V 750W 6m³/h 56m 1.25″ 2m <170V ≥1.3 × PUMP POWER
4DPC6.5‑86‑72‑1100 72V 90V‑120V 1100W 6.5m³/h 86m 1.25″ 2m <170V ≥1.3 × PUMP POWER
4DPC6.5‑86‑110‑1100 110V 110V‑150V 1100W 6.5m³/h 86m 1.25″ 2m <220V ≥1.3 × PUMP POWER
4DPC6.5‑112‑110‑1300 110V 110V‑150V 1300W 6.5m³/h 112m 1.25″ 2m <220V ≥1.3 × PUMP POWER
4DPC6.5‑135‑110‑1500 110V 110V‑150V 1500W 6.5m³/h 135m 1.25″ 2m <220V ≥1.3 × PUMP POWER
4DPC9‑45‑72‑750 72V 90V‑120V 750W 9m³/h 45m 2″ 2m <170V ≥1.3 × PUMP POWER
4DPC9‑45‑110‑750 110V 110V‑150V 1100W 9m³/h 58m 2″ 2m <220V ≥1.3 × PUMP POWER
4DPC9‑58‑110‑1100 110V 110V‑150V 1300W 9m³/h 71m 2″ 2m <220V ≥1.3 × PUMP POWER
4DPC9‑71‑110‑1300 110V 110V‑150V 1500W 9m³/h 85m 2″ 2m <220V ≥1.3 × PUMP POWER
4DPC9‑85‑110‑1500 110V 110V‑150V 1500W 9m³/h 85m 2″ 2m <220V ≥1.3 × PUMP POWER
4DPC13‑36‑72‑750 72V 90V‑120V 750W 13m³/h 36m 2″ 2m <170V ≥1.3 × PUMP POWER
4DPC13‑36‑110‑750 110V 110V‑150V 750W 13m³/h 36m 2″ 2m <220V ≥1.3 × PUMP POWER
4DPC13‑49‑110‑1100 110V 110V‑150V 1100W 13m³/h 49m 2″ 2m <220V ≥1.3 × PUMP POWER
4DPC13‑54‑110‑1300 110V 110V‑150V 1300W 13m³/h 54m 2″ 2m <220V ≥1.3 × PUMP POWER
4DPC13‑60‑110‑1500 110V 110V‑150V 1500W 13m³/h 60m 2″ 2m <220V ≥1.3 × PUMP POWER
4DPC17‑48‑110‑1500 110V 110V‑150V 1500W 17m³/h 48m 2″ 2m <220V ≥1.3 × PUMP POWER

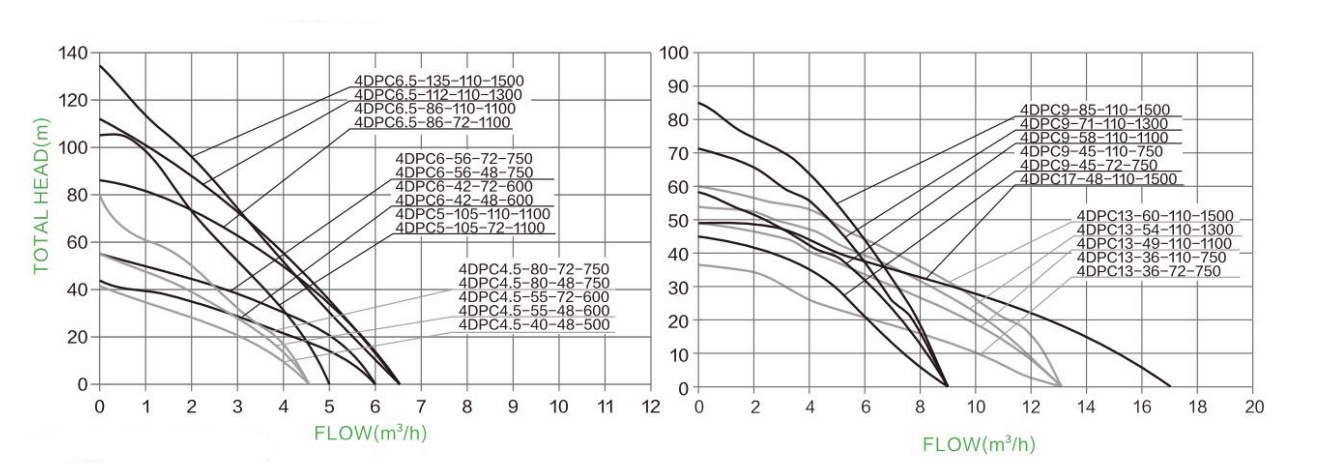

Hydraulic Performance Curves

Hydraulic Performance Curves 5

Free Spare Parts

Free Spare Parts
