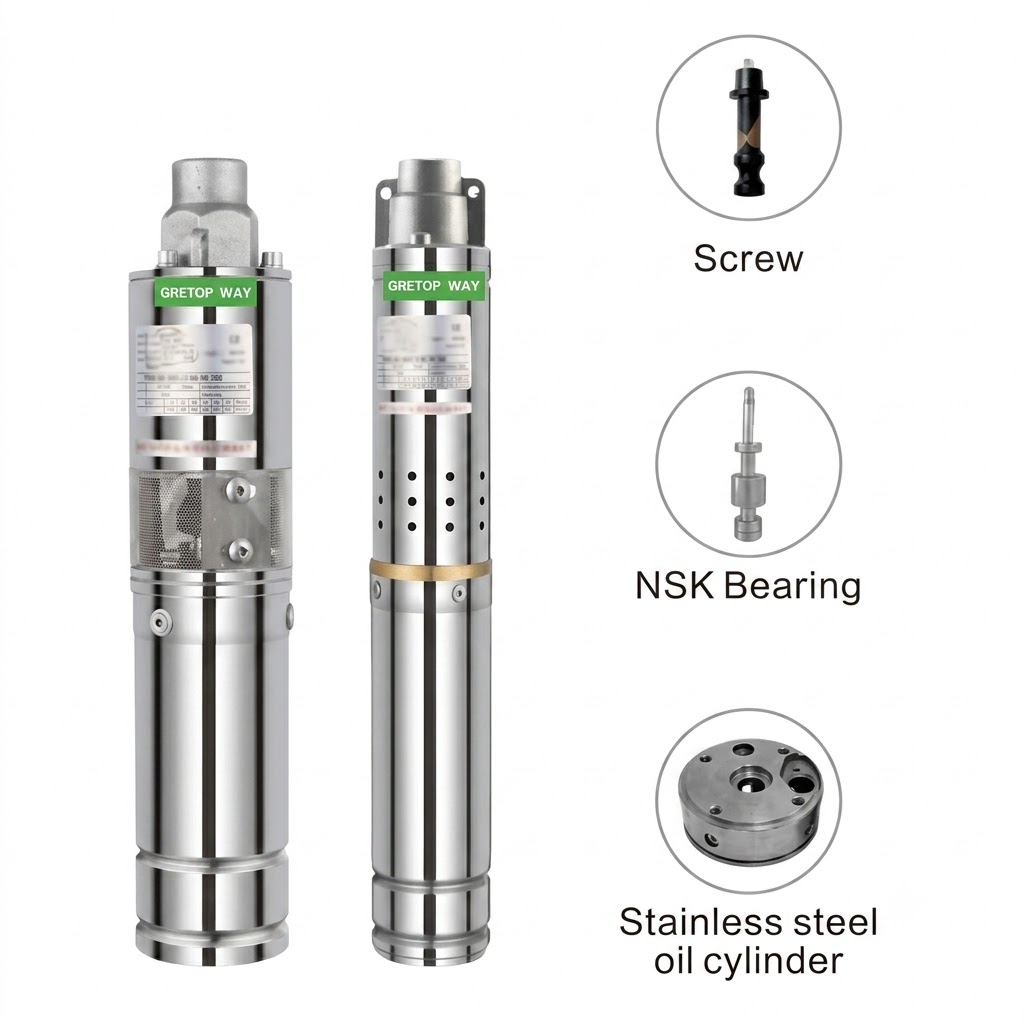

2&3&4 Inch DC Brushless Screw Solar Pump

Description

Model	Voltage	Optimum Input Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable Length	Solar Panel (VOC)	Solar Panel (Power)
2DSS1.2‑56‑24‑120	24V	30V~48V	120W	1.2m³/h	56m	0.5″	2m	<60V	≥1.3 × PUMP POWER
2DSS1.5‑75‑36‑210	36V	30V~48V	210W	1.5m³/h	75m	0.5″	2m	<60V	≥1.3 × PUMP POWER
2DSS1.7‑100‑48‑500	48V	60V~90V	500W	1.7m³/h	100m	0.5″	2m	<120V	≥1.3 × PUMP POWER
3DSS0.5‑28‑12‑80	12V	30V~48V	80W	0.5m³/h	28m	0.75″	2m	<60V	≥1.3 × PUMP POWER
3DSS1.2‑56‑24‑120	24V	30V~48V	120W	1.2m³/h	56m	0.75″	2m	<60V	≥1.3 × PUMP POWER
3DSS1.2‑77‑36‑210	36V	30V~48V	210W	1.2m³/h	77m	0.75″	2m	<60V	≥1.3 × PUMP POWER
3DSS1.7‑109‑48‑500	48V	60V~90V	500W	1.7m³/h	109m	0.75″	2m	<120V	≥1.3 × PUMP POWER
3DSS2‑150‑48‑750	48V	60V~90V	750W	2m³/h	150m	0.75″	2m	<120V	≥1.3 × PUMP POWER
3DSS2‑150‑72‑750	72V	90V~120V	750W	2m³/h	150m	0.75″	2m	<170V	≥1.3 × PUMP POWER
3DSS2.2‑180‑72‑1100	72V	90V~120V	1100W	2.2m³/h	180m	0.75″	2m	<170V	≥1.3 × PUMP POWER
4DSS2.6‑70‑48‑500	48V	60V~90V	500W	2.6m³/h	70m	1″	2m	<120V	≥1.3 × PUMP POWER
4DSS2.6‑103‑48‑600	48V	60V~90V	600W	2.6m³/h	103m	1″	2m	<120V	≥1.3 × PUMP POWER
4DSS3.7‑112‑72‑750	72V	90V~120V	750W	3.7m³/h	112m	1″	2m	<170V	≥1.3 × PUMP POWER
