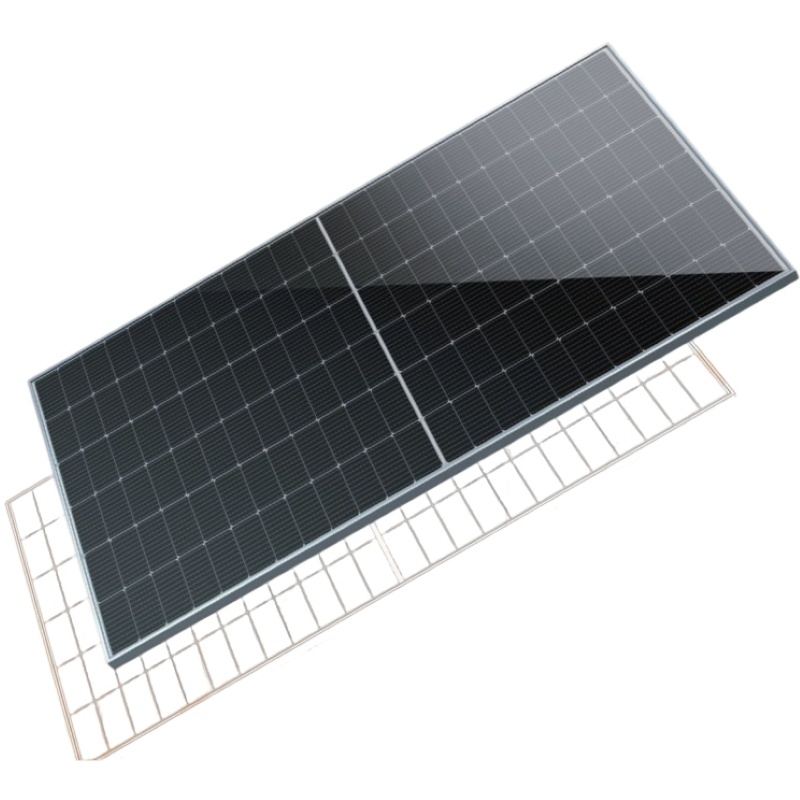

GR-M10N-72 TOPCon Mono-crystalline PV Module – 182 Cell | Non-destructive Cut| Bifacial

Module Type: GR-M10N-72

High Power High Compatibility:

Outstanding performance in weak-light conditions, lower operating temperature
Different tvpes of modules are suitable for various application scenarios

Product Warranty: 12 years

Performance Warranty (Bifacial): 30 years

GR600M10NHB-144 600W

TOPCon Mono-crystalline Bifacial Module

Module efficiency

0 %

Electrical Specifications

STC (AM1.5, Temperature 25°C, Irradiance 1000 W/m²)

Parameter	Value	Unit
Peak Power (Pmax) ±3%	600	W
Power Sorting	0~+4.99	W
Max. Power Voltage (Vmp)	43.68	V
Max. Power Current (Imp)	13.74	A
Open-circuit Voltage (Voc) ±3%	51.84	V
Short-circuit Current (Isc) ±3%	14.55	A

NMOT (AM1.5, Temperature 20°C, Wind speed 1m/s, Irradiance 800 W/m²)

Parameter	Value	Unit
Peak Power (Pmax) ±3%	448.8	W
Max. Power Voltage (Vmp)	40.62	V
Max. Power Current (Imp)	11.05	A
Open-circuit Voltage (Voc) ±3%	48.21	V
Short-circuit Current (Isc) ±3%	11.78	A

General / Operating Parameters

Parameter	Value	Unit
Operating Temperature	-40~+85	°C
Max. Series Fuse Rating	30	A
Max. System Voltage (DC)	1500 (IEC)	V

Mechanical Specifications

Solar Cells	N-Topcon-Mono-182
Arrangement	Type-6122
Front Glass	2.0mm tempered glass
Back Glass	2.0mm tempered glass
Frame	Anodized aluminium alloy
Junction Box	IP68, 3 diodes
Cables	4.0mm² photovoltaic cables
Connectors	MC4 compatible/DC 1500V
Maximum Load Capacity	Snow-5400Pa/Wind-2400Pa
Safety Rate	Class II (IEC)
Fire Rate	Class C (TUV)
Bifaciality	80±5%

Packing Configuration

Package Weight	1150Kg/pallet
Package Size	231011401265mm
20’GP Container	/
40’HQ Container	37 pcs/pallet & 20 pallets/40’HQ & 740 pcs

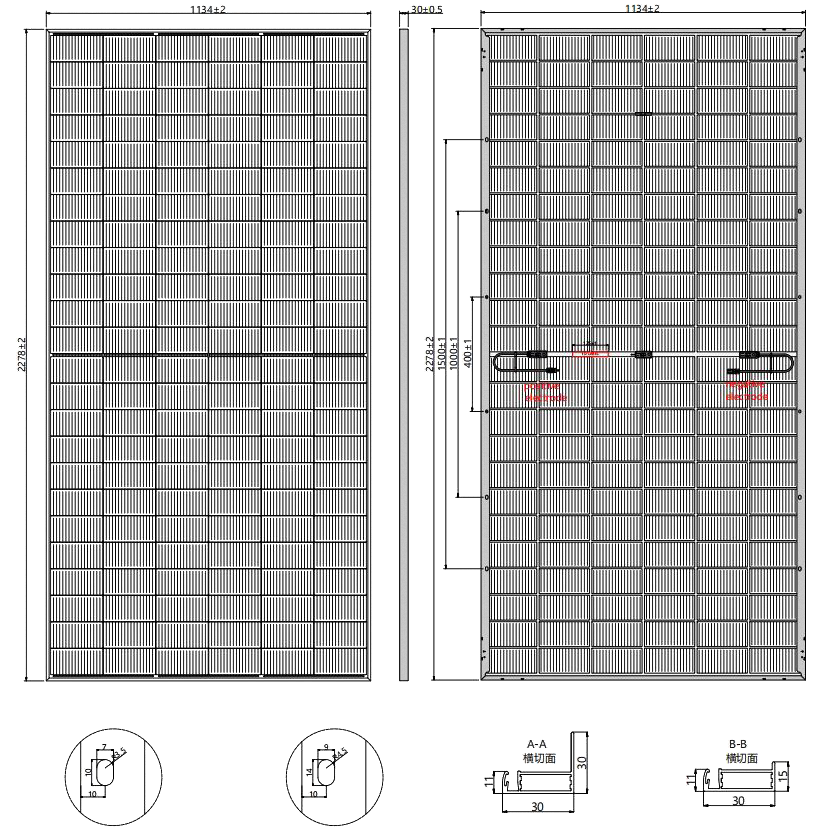

Dimensions of PV Module

Module Dimensions	2278113430mm
Module Weight	30.4 kg (±3%)

Temperature Characteristics

Temperature Coefficient (Pmax)	δ[%/∘C]	-0.30
Temperature Coefficient (Voc)	δ[%/∘C]	-0.25
Temperature Coefficient (Isc)	α[%/∘C]	+0.05
Nominal Operating Cell Temperature	NMOT	45°C ± 2°C

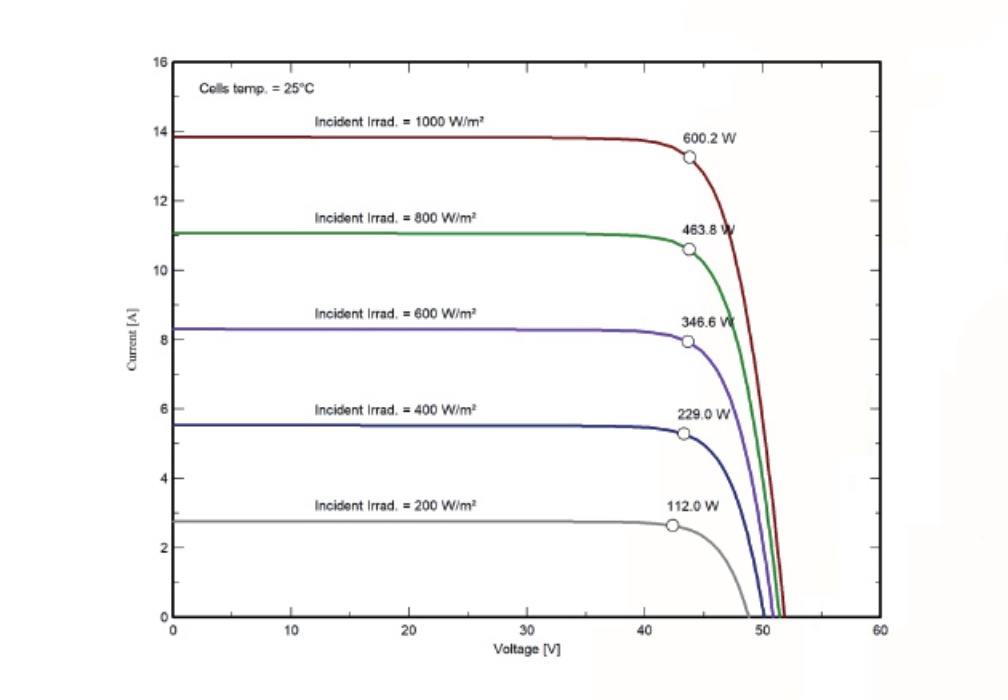

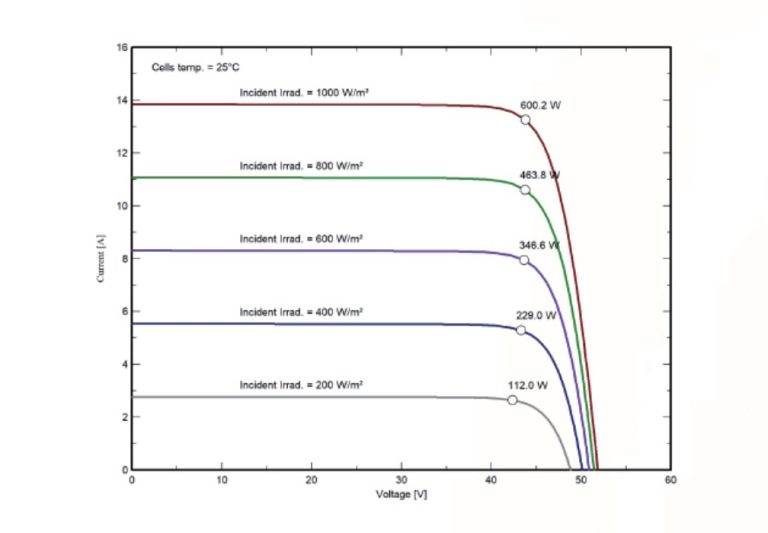

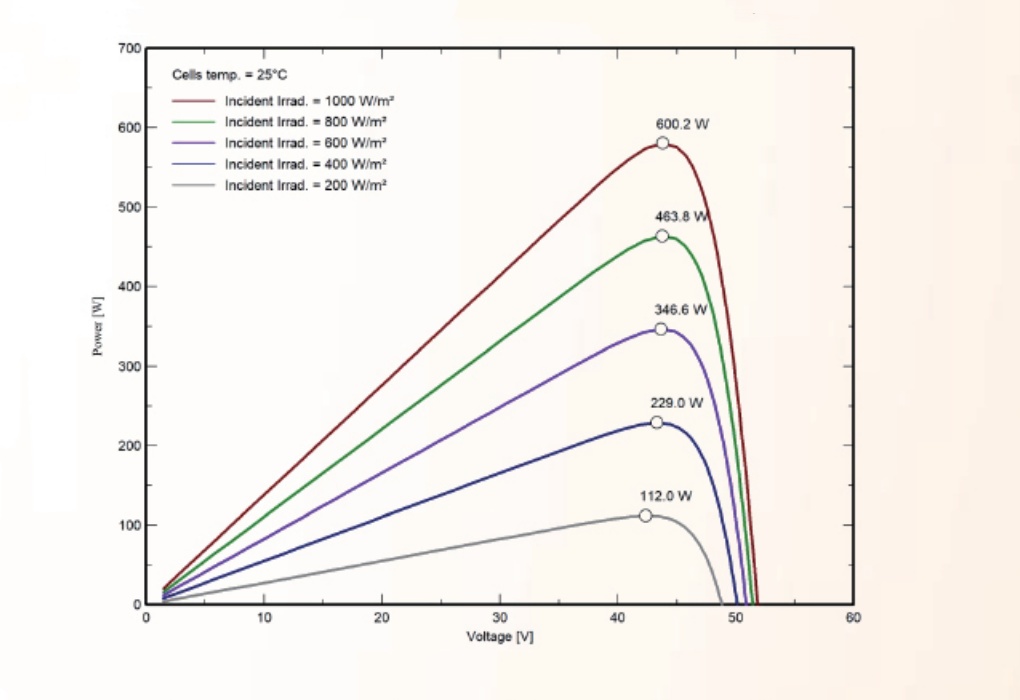

I-V & P-V Curves

Different Backside Power Gain

Power Gain		5%	15%	25%
Maximum Power(Pmax)	(W)	630.0	690.0	750.0
Max.Power Voltage(Vmp)	(V)	43.68	43.68	43.68
Max.Power Current(lmp)	(A)	14.42	15.80	17.17
Open-circuit Voltage(Voc)	(V)	51.84	51.84	51.84
Short-circuit Current(Isc)	(A)	15.38	16.85	18.31
