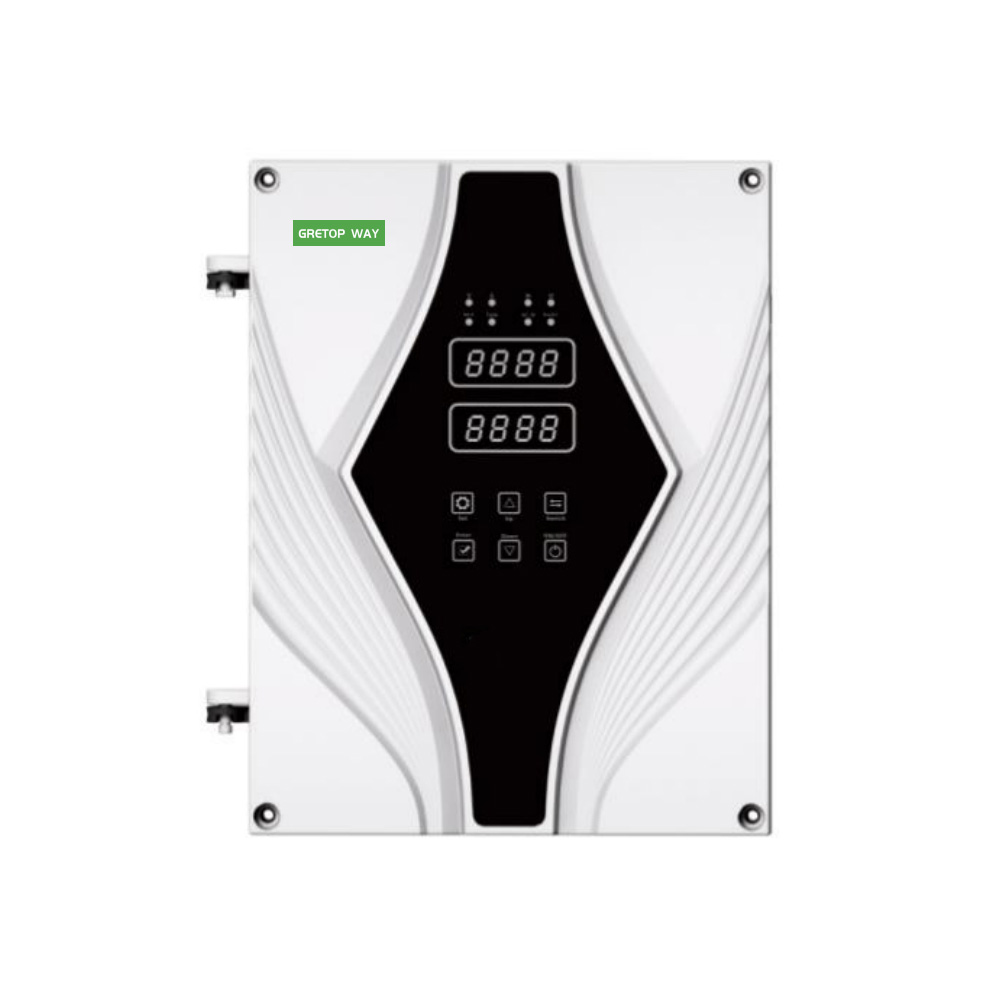

AC/DC Hybrid Solar Pump Controller

AC/DC Hybrid Solar Pump Controller

Product Features:

AC working voltage: 90VAC~260VAC, auto-adaptive frequency.
DC working voltage: 150VDC-430VDC
Max. AC input current:15A
Max.DC input current: 15A
Max.input power:3KW
Waterproof rate: IP65
Electronic control working environment temperature:-15~60℃

Description

Description

Solar Pump Controller

Working environment and electrical property

Controller Model	Adaptable Pump	Max.Input Current(A)	Max.Open Circuit Voltage(V)	MPPT Voltage Range(V)
TP-24	Rated 24V Pump	17	<50	30–48
TP-48	Rated 48V Pump	17	<100	60–90
TP-72	Rated 72V Pump	17	<150	90–120
TP-96	Rated 96V Pump	17	<200	110–150
