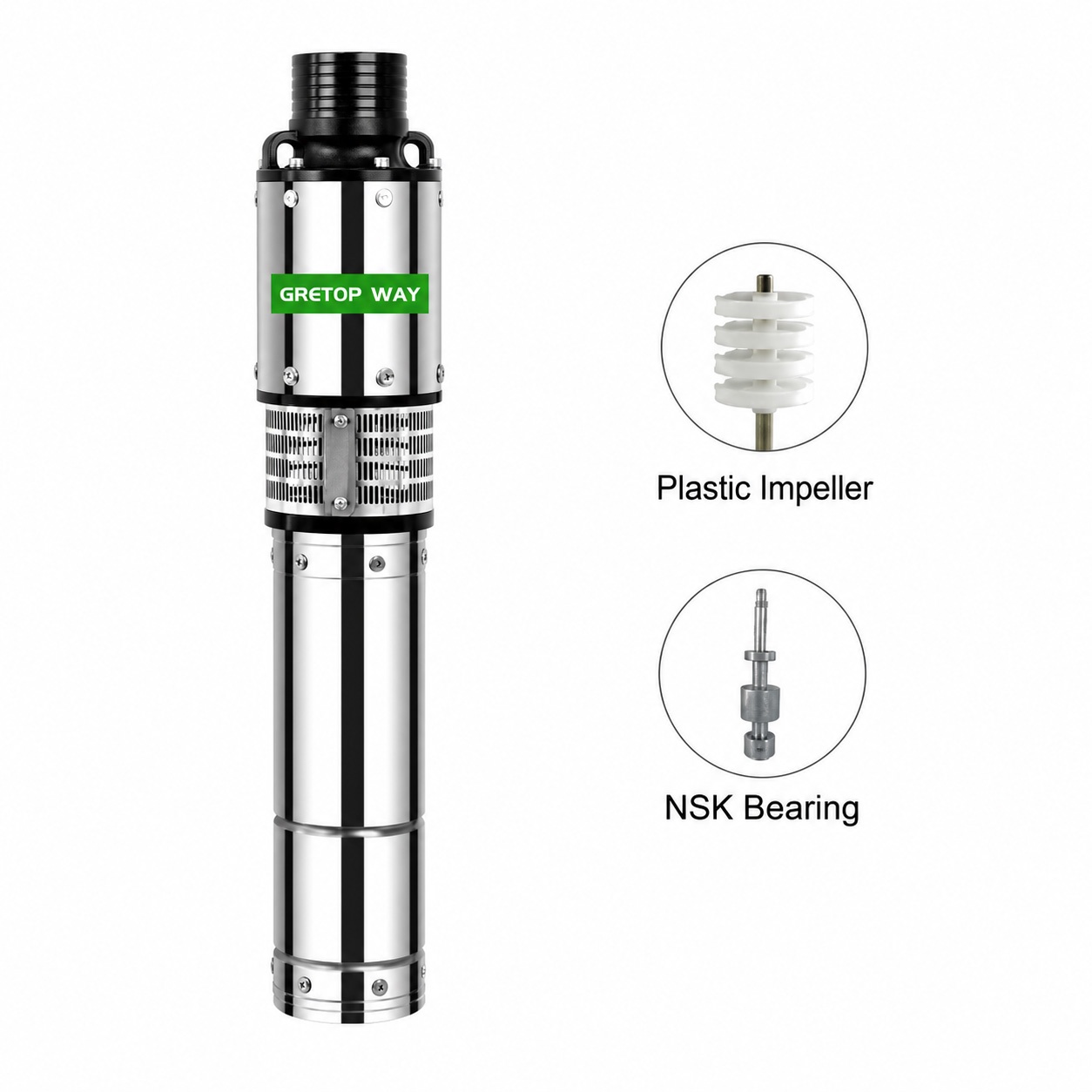

6/8 Inch AC/DC Brushless Solar Pump With Plastic Impeller(7.5kW-22kW)

Description

Model	Voltage	Optimum Input Voltage (DC)	Power	Max. Flow	Max. Head	Outlet	Cable Length	Open Circuit Voltage (VOC)	Solar Panel Power
6DSC110‑75‑380/520‑15000‑A/D	AC380/DC520V	520V‑650V	15000W	110m³/h	75m	4″	2m	<900V	≥1.3 × PUMP POWER
6DSC110‑105‑380/520‑18500‑A/D	AC380/DC520V	520V‑650V	18500W	110m³/h	105m	4″	2m	<900V	≥1.3 × PUMP POWER
6DSC110‑130‑380/520‑22000‑A/D	AC380/DC520V	520V‑650V	22000W	110m³/h	130m	4″	2m	<900V	≥1.3 × PUMP POWER
6DSC110‑168‑380/520‑26000‑A/D	AC380/DC520V	520V‑650V	26000W	110m³/h	168m	4″	2.5m	<800V	≥1.3 × PUMP POWER
6DSC110‑200‑380/520‑30000‑A/D	AC380/DC520V	520V‑650V	30000W	110m³/h	200m	4″	2.5m	<800V	≥1.3 × PUMP POWER
6DSC110‑225‑380/520‑37000‑A/D	AC380/DC520V	520V‑650V	37000W	110m³/h	225m	4″	2.5m	<800V	≥1.3 × PUMP POWER
6/8DSC150‑37‑380/520‑11000‑A/D	AC380/DC520V	520V‑650V	11000W	150m³/h	37m	4″	2m	<900V	≥1.3 × PUMP POWER
6/8DSC150‑77‑380/520‑22000‑A/D	AC380/DC520V	520V‑650V	22000W	150m³/h	77m	4″	2m	<900V	≥1.3 × PUMP POWER
6/8DSC150‑125‑380/520‑30000‑A/D	AC380/DC520V	520V‑650V	30000W	150m³/h	125m	4″	2.5m	<800V	≥1.3 × PUMP POWER
